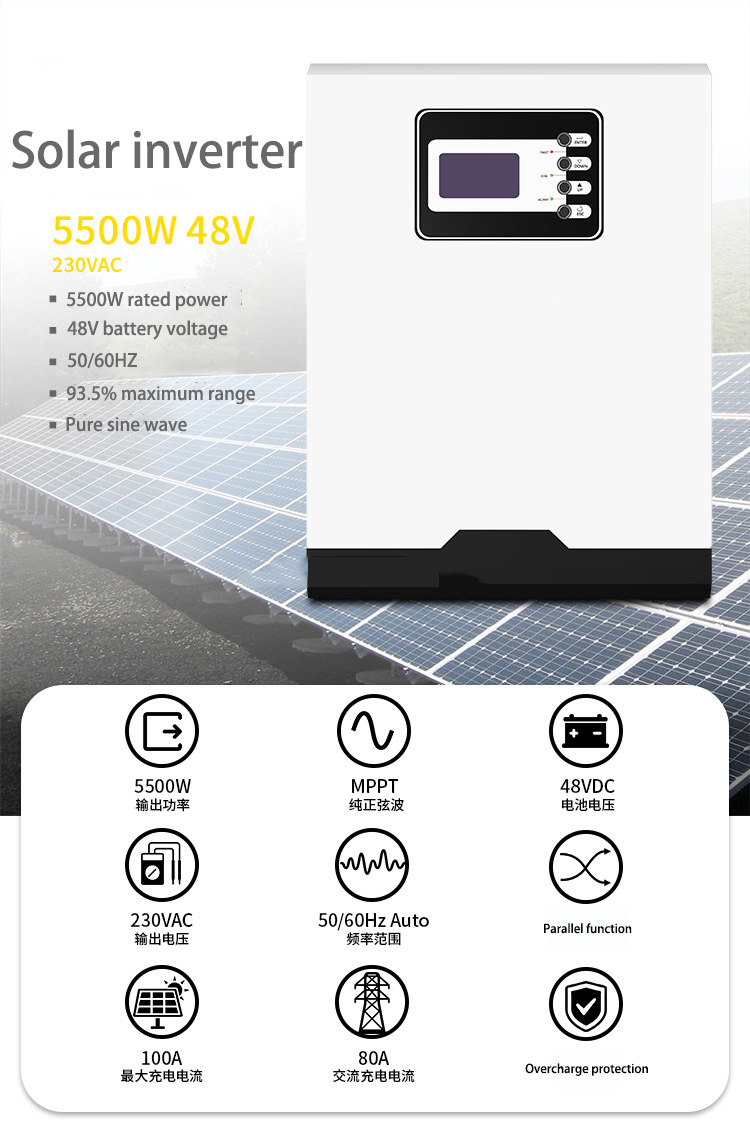

Hybrid MPPT 3KW 5KW solar inverter built in MPPT solar controller with 100A

Hybrid MPPT 3KW 5KW solar inverter built in MPPT solar controller with 100A

Product Description

An inverter is a power electronics device that can convert direct current (DC) electrical energy into alternating current (AC) electrical energy. It changes the voltage, frequency, and phase of the input power supply by controlling current and voltage, thereby achieving power conversion.

Product Advantages

Inverters allow DC devices to use AC power. An inverter converts DC power to AC power, which means DC devices can run on mains (AC) power without having to replace the power supply.
Inverters save energy. Inverters save energy by converting DC power sources like solar panels into AC power. It can also use other DC sources, such as car batteries, to provide temporary power during a power outage.
Inverters can increase the flexibility and mobility of equipment. Since an inverter converts DC power to AC power, it is easy to move equipment to different locations regardless of whether AC power is available at that location.
Inverters can improve power quality. Inverters filter out clutter and voltage spikes in the power supply, providing more stable, cleaner power.
Inverters protect electronic equipment. Inverters can provide the stable power required by electronic equipment, thereby reducing the risk of damage to electronic equipment.

Product Specifications

Rated power 5500VA/5500W
Voltage 230VAC
Optional voltage range 170-280VAC;90-280VAC
Frequency range 50Hz/60Hz
AC voltage regulation (battery mode) 230VAC±5%
Surge power 11000VA
Efficiency (peak value) Up to 93.5%
Conversion time 10ms;20ms
Waveform Pure sine wave
Battery voltage 48VDC
Floating charge voltage 54VDC
Overcharge protection 63VDC
Maximum photovoltaic array open circuit voltage 500VDC
Maximum PV array power 5500W
MPPT range operating voltage 120~450VDC
Maximum solar charging current 100A
Maximum AC charging current 80A
Maximum charging current 100A
Length of external dimension × wide × H(mm) 100×300×440
Net weight (kgs) 10
Communication interface USB/RS232
Humidity 5% to 90% RH (non condensing)
working temperature -10℃ to 50℃
Storage temperature -15℃ to 60℃
